Low bed trailer type & models
We offer the machine transport trailers in the following different versions (varnished or galvanized) – most of the models have a COC / EC type approval!
Total weight 5000 kg, Order No. 645/5000, PL approx. 340 kg, Loading measure inside approx. 4000x2300mm,
Loading height unloaded approx. 810mm
Low bed trailer model 645/5000 with galvanized chassis and nethooks
Total weight 8900 kg, Order No. 652/8900, PL approx. 6650 kg, Loading measure inside approx. 5000×2450 mm,
Loading height unloaded approx. 850 mm
Tandem Low Bed trailer model 652/8900 with spring lift support, grids in the ramps and steel border between ramps
Total weight 11900 kg, Order No. 664/11900, PL approx. 9200 kg, Loading measure inside approx. 5000×2450 mm,
Loading height unloaded approx. 880 mm
Tandem Low Bed Trailer model 664/11900 with galvanized chassis, divided sidewalls, grids in ramps and border between steel ramps

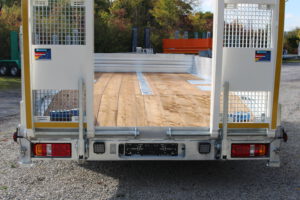

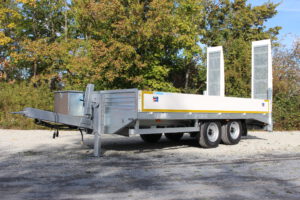

Universal Tandem low bed trailer with aluminum side walls and central lashing rail
Total weight 11900kg
Payload about 9000kg
Loading dimensions approx. 5.50 x 2.42 x 0,4 m
Loading height unloaded approx. 88 cm
Height-adjustable drawbar (adjustment range 0.78-1.02m)
Outer profile with retractable lashing brackets with 3000daN lashing capacity, with hooks/troughs with 4000daN in the corners
Side walls made of painted aluminum side walls 40 cm high
Ramps with galvanized grids and spring ramp lifter for lifting assistance
Steel tool box attached to the bulkhead
Additional LED reversing lights (activated via reverse gear)
Lashing strip in the middle of the straight loading area with 4 rotatable lashing recesses (loadable up to 4000daN)
Brake system Wabco ABS with spring brake
Wooden floor made of larch wood with tongue and groove, 40mm thick
Hot-dip galvanized chassis, aluminum side walls painted in RAL 9010 pure white
WITH TÜV homologation – with EBS brake system it can be delivered with COC
Exhibition trailer Bauma 20222: Tandem Low Bed Trailer model 664/11900 with galvanized chassis, aluminum side walls, grids in the ramps and strong tool box at front panel
Total weight 11900 kg, Order No. 674/11900, PL approx. 9200 kg, Loading measures inside approx. 5000×2450 mm, Loading height unloaded approx. 850 mm, twin wheels
Total weight 14000 kg, Order No. 682/14000, PL approx. 10800 kg, Loading measures inside approx. 5000×2450 mm,
Loading height unloaded approx. 900 mm, twin wheels
Tandem Low Bed Trailer model 682/14000 with galvanized chassis, divided sidewalls, grids in ramps, steel bulb floor and steel metal box at front
Total weight 18000 kg, Order No. 688/18000, PL approx. 14000 kg, Loading measures inside approx. 6200×2450 mm,
Loading height unloaded approx. 980 mm, twin wheels (loading height also possible of about 870mm!)
Tandem Low Bed Trailer model 688/18000 with galvanized chassis, warning signs and grids in ramps, front protection
Total weight 21000 kg, Order No. 687/21000, PL approx. 16800 kg, Loading measure approx. 6200×2450 mm,
Loading height unloaded approx. 1020 mm, twin wheels, distance between axles > 1,80m (also a loading height of approx. 870mm possible!)
Tandem Low Bed Trailer model 687/21000 with front wall elevation, rotating beacon, extendable warning signs, additional LED backing lights, without sidewalls, big tool box
Strong Tandem low bed trailer with approx. 16,7t payload for transporting construction machinery; with height-adjustable drawbar
Total weight 21.000kg
Payload approx. 16.650kg
Loading dimensions approx. 7.00m x 2.55m
Drawbar 3-times height-adjustable with 50mm towing eye, average coupling height: 705/835/960mm, can be changed using socket pins, free drawbar length 1.80m
Air suspension with lifting and lowering
Loading height approx. 89cm when ready to drive
Without side walls
Ramps extended to 2.70m, widened to 70cm, with galvanized grids, adjustable on the side using lever
Hydraulic ramp lifter in combination with electro-hydraulic compact unit, operated via radio remote control, hydraulic unit with 800W power and NATO socket as well as electric coiled cable
Full LED lighting, 24V, additional LED reversing lights can be activated via reverse gear
Chassis and ramps hot-dip galvanized, drawbar painted in RAL 9006
Tool box 800x400x490mm, lockable
Double wooden floor, made of spruce wood sub-floor 44mm thick and 24mm plywood top floor
EBS braking system
WITH TÜV homologation – can be delivered with COC when using fixed drawbar
Tandem Low Bed Trailer model 687/21000 with 3x height-adjustable drawbar, galvanized
Total weight 25000 kg, Order No. 689/25000 Tridem, PL approx. 20000 kg, Loading measures approx. 6200×2450 mm,
Loading height unloaded approx. 1020 mm, twin wheels, (also loading height of about 960mm possible!)
Tridem Low Bed Trailer model 689/25000 with extendable warning signs, steering axle, air suspension, hydraulic ramps lifters with electrical pump, widening to 3,0m above wheels for oversize load
Our Low bed trailer models with inserted ramps made of aluminium
Total weight 8900 kg, Order No. 692/8900, PL approx. 6800, Loading measures inside approx. 5000×2450 mm,
Loading height unloaded approx. 850 mm
Tandem Low Bed Trailer model 692/8900 with insertable ramps underneath the loading area, with support frame for excavator shovel and tool box
Total weight 11900 kg, Order No. 695/11900, PL approx. 9400 kg, Loading measures inside approx. 5000×2450 mm, Loading height unloaded approx. 880 mm
Tandem Low Bed Trailer model 695/11900 with 600mm high aluminium sidewalls plus additional alu sidewalls 400mm, with extendable warning signs, additional LED backing lights, tool box and net hooks
All Low Bed trailers can be delivered in the requested length or colour and can be equipped with
- toolboxes
- net hooks
- spare tyre and holder
- rotary head with alternatively 40mm and 50mm drawbar eyes
- support frame for excavator and crawler shovel at front wall
- additional or different lashing points
- floor made of steel bulb plate
- ramp lifters made of springs
- galvanized grids in the ramps
- galvanized chassis
- container locks
- front wall heightened
- aluminium-sidewalls
Please just ask us!
