Flatbed/Machine Transport Trailer types & models

We offer the machine transport trailers in the following different versions (varnished or galvanized) – most of the models have a COC / EC type approval!

Total weight 4500 kg, order number 544/4500, PL approx. 3550 kg, loading measure inside 3500x1750mm,
Loading height unloaded approx. 580mm

Type sheet 544-4500


544/4500 with wooden surface in the ramps and support for excavator shovel at frontwall

Total weight 5000 kg, Order No. 545/5000, PL approx. 3700 kg, Loading measures inside approx. 3500×1750 mm,
Loading height unloaded approx. 580 mm

Type sheet 545-5000


545/5000 with longer loading area

Total weight 8900 kg, Order No. 554/8900, PL approx. 6950 kg, Loading measure inside approx. 4500×2030 mm
Loading height unloaded approx. 660 mm – varnished in the colour of your choice or hot-dip galvanized

Type sheet 554-8900

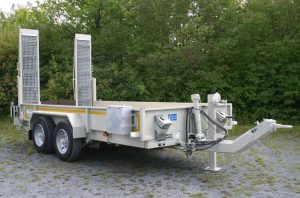

554/8900 with grids in the ramps and small tool box

Total weight 10500 kg, Order No. 556/10500, PL approx. 8250 kg, Loading measure inside approx. 4500×2000 mm
Loading height unloaded approx. 720 mm – varnished in the colour of your choice or hot-dip galvanized

Type sheet 556-10500


556/10500 with spare tyre, galvanized grids in the ramps and higher front wall

Total weight 11900 kg, Order No. 558/11900, PL approx. 9650 kg, Loading measure inside approx. 4500×2000 mm
Loading height unloaded approx. 720 mm – varnished in the colour of your choice or hot-dip galvanized

Type sheet 558-11900


558/11800 (as 556/10500) with elevated front wall, spare tyre and galvanized grids in the ramps

Sturdy machine transport trailer with a lockable storage box that protects your tools and equipment in the best possible way and simplifies load securing!

Total weight 8900 kg
Payload approx. 6580kg
Loading dimensions inside approx. 4,5 x 2,03 x 0,38 m
Loading height unloaded approx. 660 mm
Drawbar continuously height-adjustable (adjustment range 0.78-1.02m)
Ramps with grids and easy to lift with gas springs
Lashing hooks in the corners with 4000daN, 3 pairs of lashing eyes with 2500daN sunk into the ground

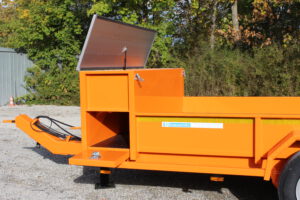

Double storage box: depth 50cm, height 76cm, width 203cm; lower compartment can be loaded from the side with two lockable flaps, upper compartment can be loaded from above with a lockable anodised aluminum flap, intermediate shelf made of plywood board
Painted in RAL 2011 deep orange

WITH COC AVAILABLE!

Type sheet 554-8900

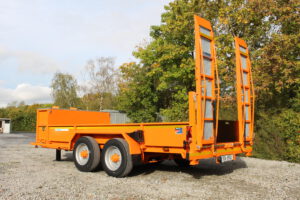

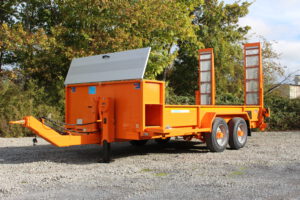

554/8900 with double storage box and grids in the ramps

    Datenschutzhinweise siehe Datenschutzerklärung.

    Special-Machine Transport Trailer Type AWST for the transport of forklifts and milling machines

    The type “AWST” is specially designed for the transport of forklifts and milling machines. In difference to the standard program of our machine transport trailers this model has a bevelling tailgate. A lower drive up angle of 12° degree can therefore be achieved. This is a clear advantage for vehicles with a low ground clearance! Additionally these trailers are equipped with a double wooden floor and the chassis is strengthened. This “extra” for stability guarantees the unproblematic transport of machines with higher punctual load.

    Total weight 8900 kg, Order No. 566/8900, PL approx. 6780 kg, Loading measure inside approx. 4500×2030 mm,
    Loading height unloaded approx. 690 mm, with beveling tailgate and double wooden floor – varnished in the colour of your choice or hot-dip galvanized

    Type sheet 566-8900

    566/8900 with lashing hooks on the sidewalls

    Total weight 10500 kg, Order No. 568/10500, PL approx. 8100 kg, Loading measure inside approx. 4500×2000 mm,
    Loading height unloaded approx. 730 mm, with beveling tailgate and double wooden floor – varnished in the colour of your choice or hot-dip galvanized

    Type sheet 568-10500

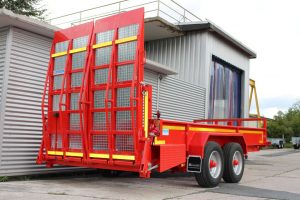

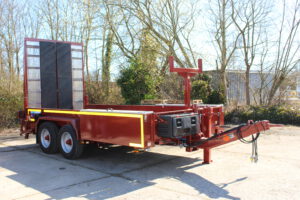

    568/10500 with closed loading ramp (divided) with grids and support frame for excavator shovel

    Total weight 11900 kg, Order No. 569/11900, PL approx. 9500 kg, Loading measure inside approx. 4500×2000 mm,
    Loading height unloaded approx. 730 mm, with beveling tailgate and double wooden floor – varnished in the colour of your choice or hot-dip galvanized

    Type sheet 569-11900


    569/11900 with closed loading ramp, once divided

    All machine transport trailers can be delivered in the length and colour of your preference and can be aditionally equipped with

    • tool boxes
    • nethooks

      552/6900 in the galvanized version
    • spare tyre and holder
    • Rotary head with alternatively 40mm and 50mm drawbar eyes
    • Support frame for excavator and crawler shovel at front wall
    • additional lashing hooks
    • floor made of steel bulb plate
    • ramplifters made of springs (maintenance free)
    • galvanized grids in the ramps

    Please just ask us!
